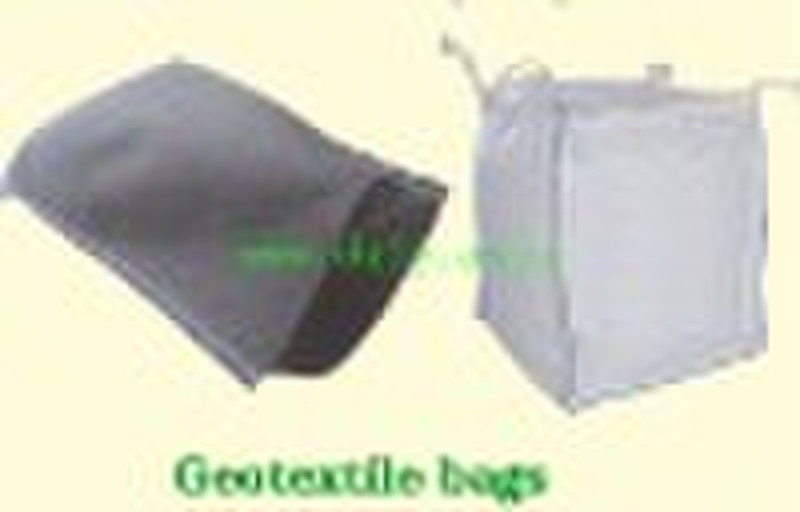

Woven Geotextile bag

Split silk woven geotextile and reinforcement geotextile Description: Split silk woven geotextile using the polypropylene as the material has the merits of low weight, high reinforcement, small elongation, easy installation, low price, etc. And it can fixed with one piece or two pieces of needle punched geotextile to form the reinforcement geotextile. Basic Technical Specification of Split silk woven geotextile: Weight:100--650g/ Width: 2---6 Meters Length per roll: We can design to meet your requests. Basic Technical Specification of Reinforcement Geotextile: Width: 3.0---4.0m Weight:300---1200g/ Technical spcification of split silk woven geotextile: Items unit Value Weight g/ 120 160 200 240 280 340 400 460 520 580 640 Breaking Strength MD KN/m 20 30 40 50 60 80 100 120 140 160 180 TD KN/m According to the agreement. the value will be( 0.71)×value of MD without request. Elongation at Break % ≤ 25 Width Variation % -1.0 CBR Mullen KN≥ 1.6 2.4 3.2 4.0 4.8 6.0 7.5 9.0 10.5 12.0 13.5 Sieve Size O95 mm 0.070.5 Permeability cm/s K×(10-210-5) k=1.0-9.9 UV Resistance %≥ 70(500h) Tear Strength KN≥ 0.20 0.27 0.34 0.41 0.48 0.60 0.72 0.84 0.96 1.10 1.25 Note:This technical Specification is just for reference, and we can design the product meet your specification requirements.
